Power Systems
- Main Distribution Panel
- Sub Main Distribution Panel
- Final Distribution Panel
- Automatic Transfer Switch (ATS) Panel
- Motor Control Centers
- Capacitor Panels
- Miscellaneous

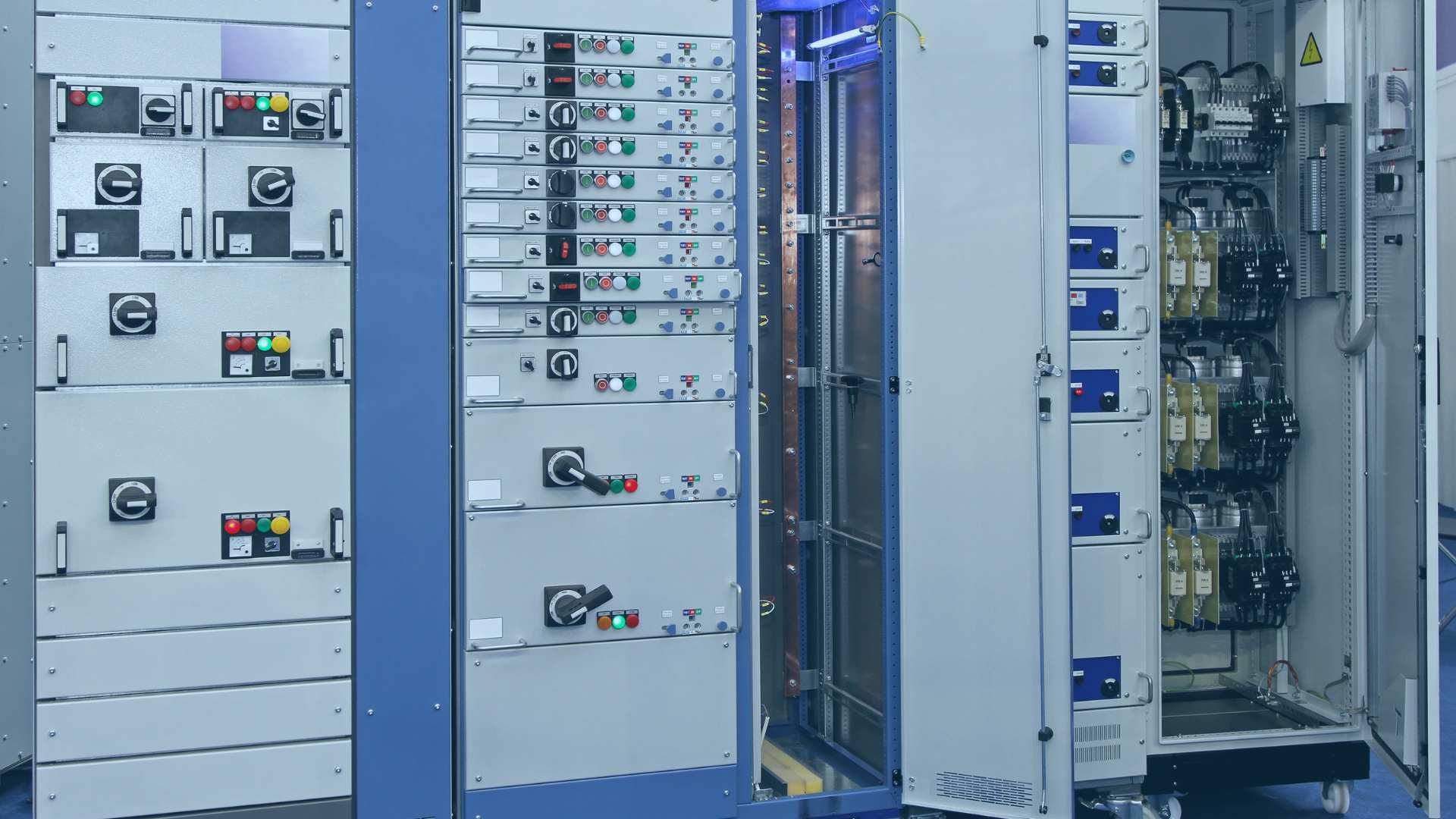

Main Distribution Panel
Specifications:
- Accordance with IEC 61439-1 & 2.
- Rated insulation voltage up to 1000V
- Main busbars up to 2500 A
- Neutral busbars rated up to 100% of main busbar
- Earth busbars rated up to 100% of Neutral busbar
- Forms of internal separation from Form 1 to Form 4b
- Designed for ambient temperature up to 50 °C
- Indoor & outdoor applications, up to IP55
- Powder coating as per customer color choice

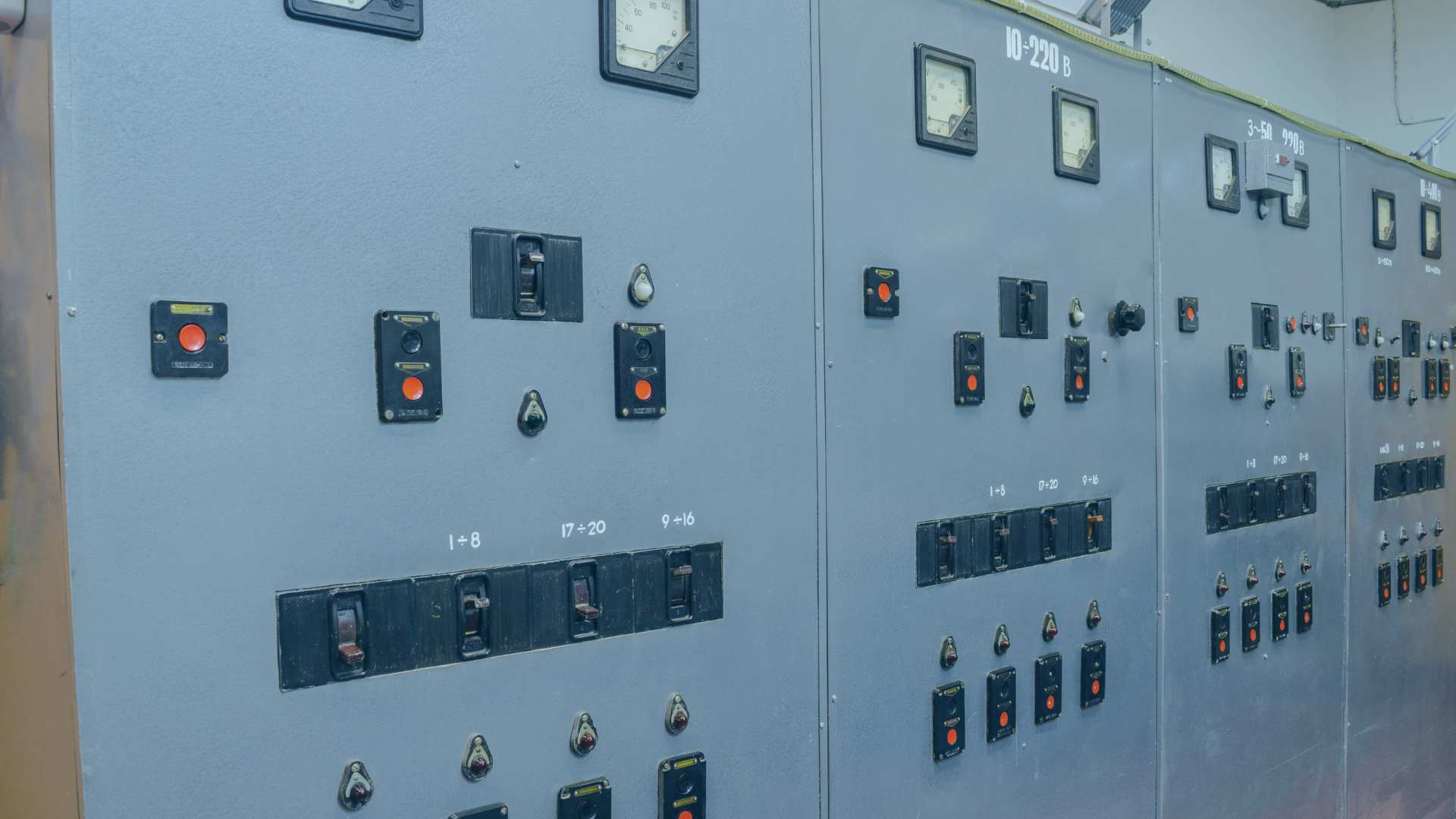

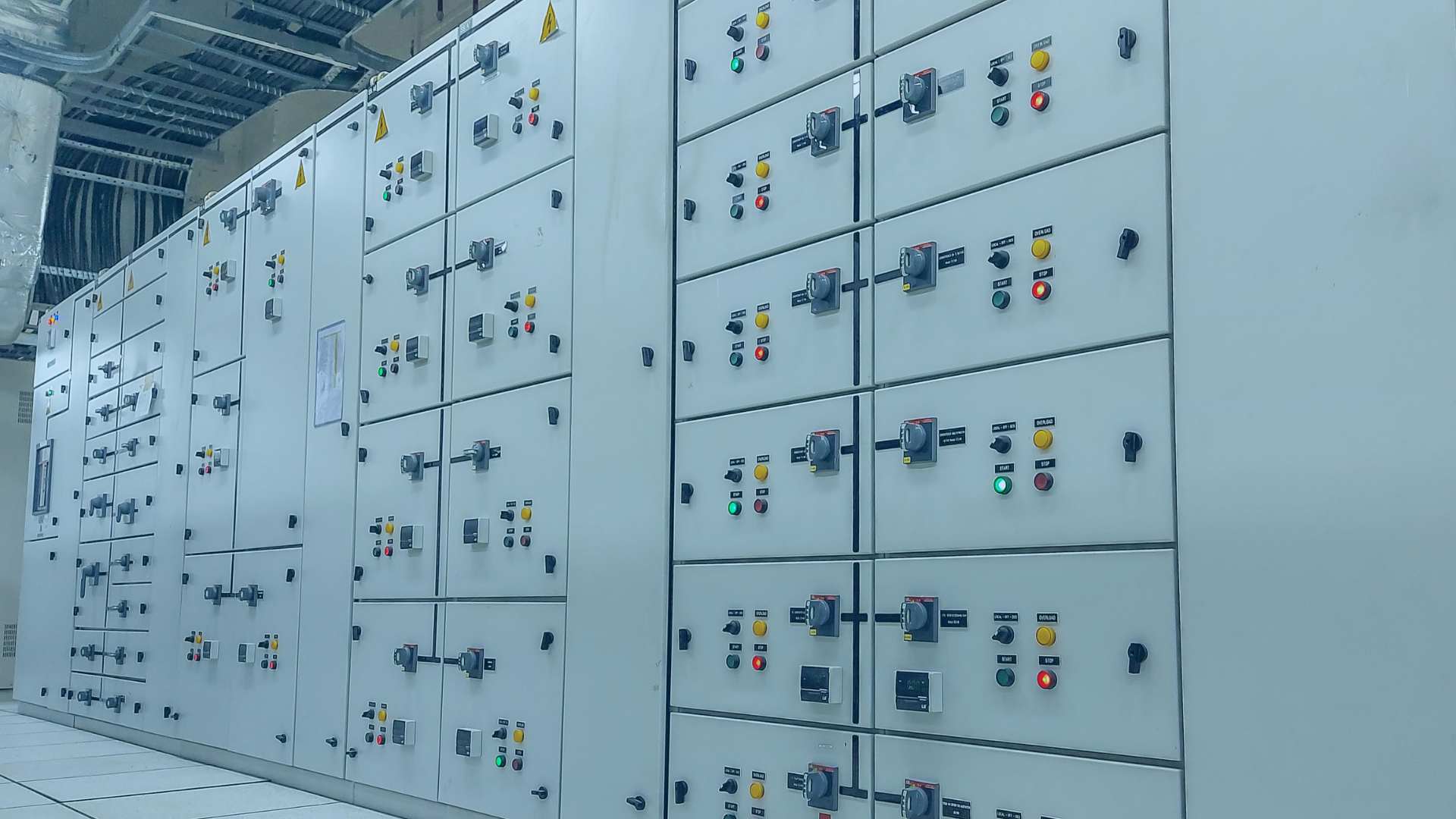

Sub Main Distribution Panel
Specifications:
- In Accordance to IEC 61439-1
- Rated operating voltage up to 690V
- Manufactured to Form 2 & Form 4 construction
- Ample cabling space for easy connections
- Top and bottom cable entry
- Panels for front or rear access
- Indoor & outdoor applications, up to IP55
- Wall mounting or free standing to suit application
- Powder coating as per customer color choice

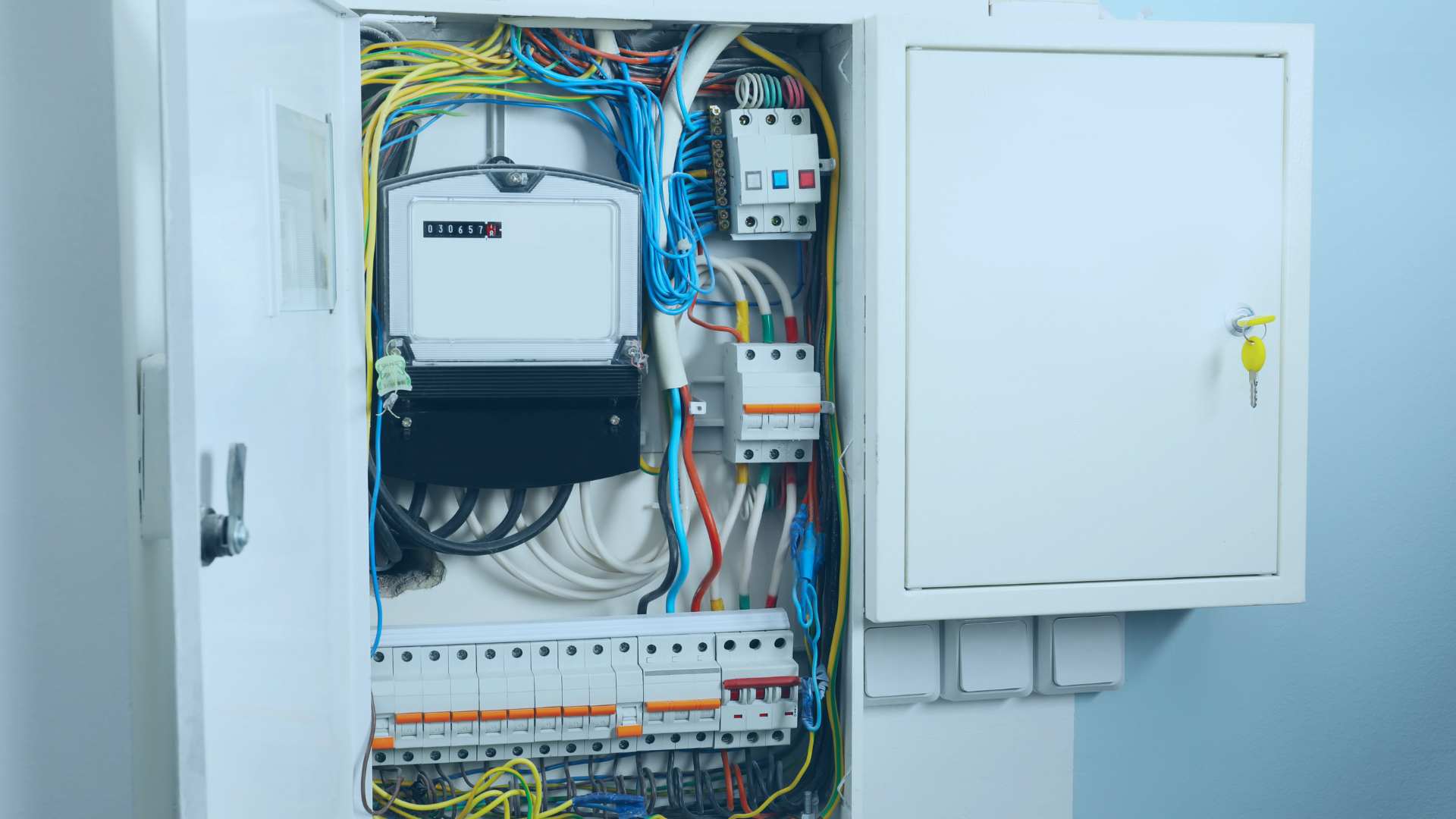

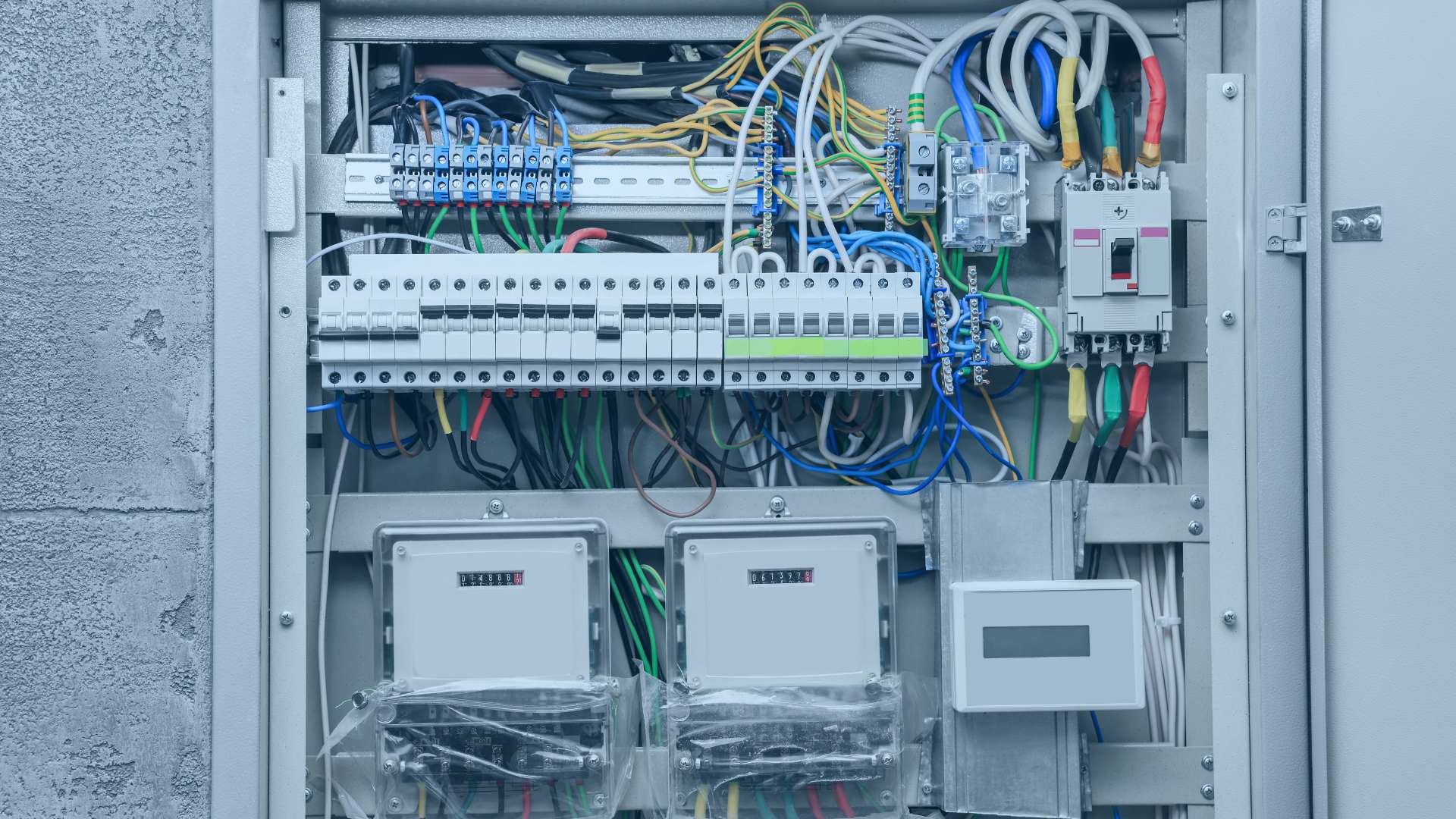

Final Distribution Panel
Specifications:
- Accordance with IEC 61439
- Current rating up to 250A
- Index of protection: IP41 & IP55 as per IEC 60529
- Available in row type or pan assembly (single/multi)
- Flush or surface versions
- Compliant with local regulations
- Easy installation and maintenance
- Powder coating as per customer color choice

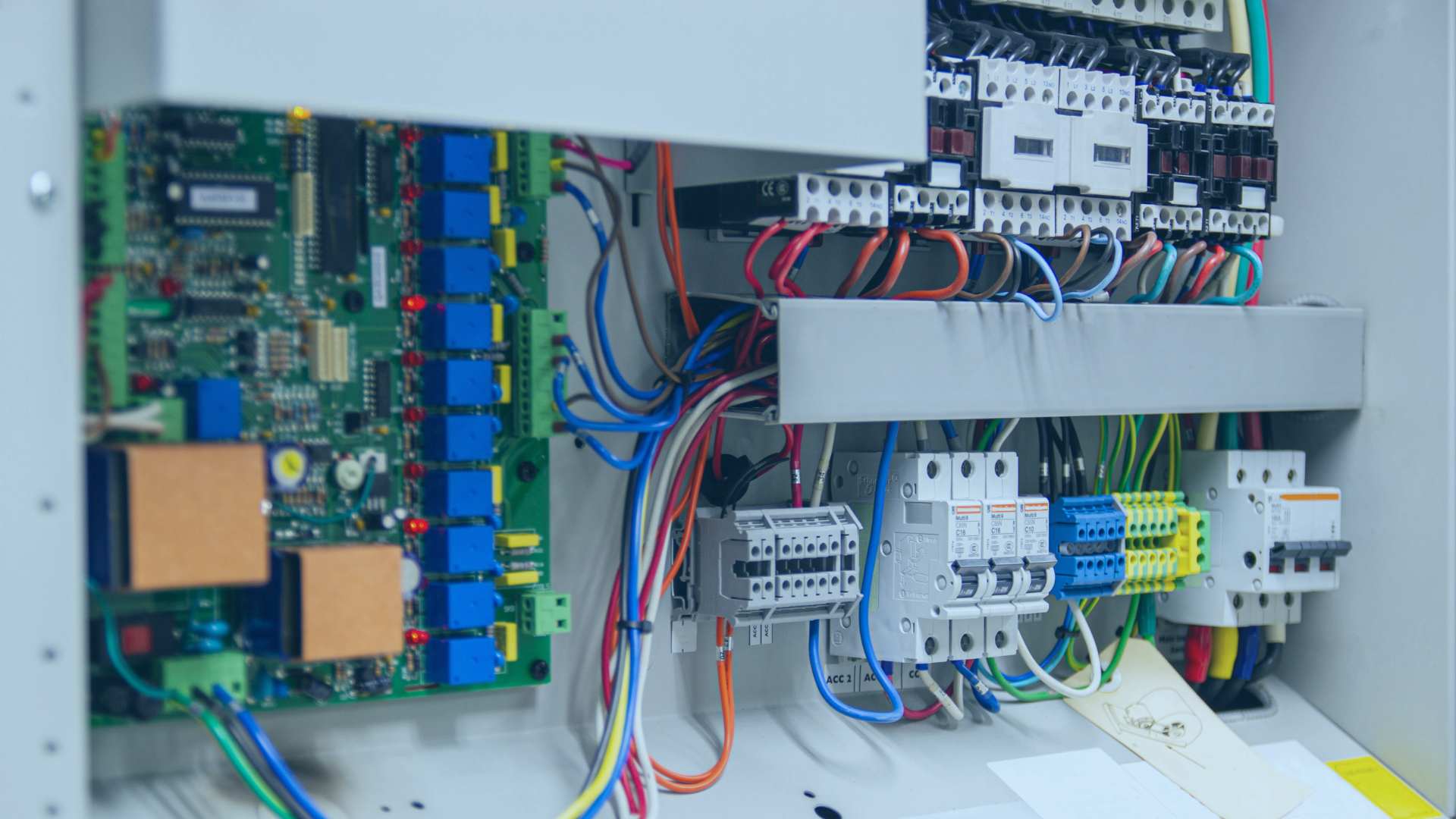

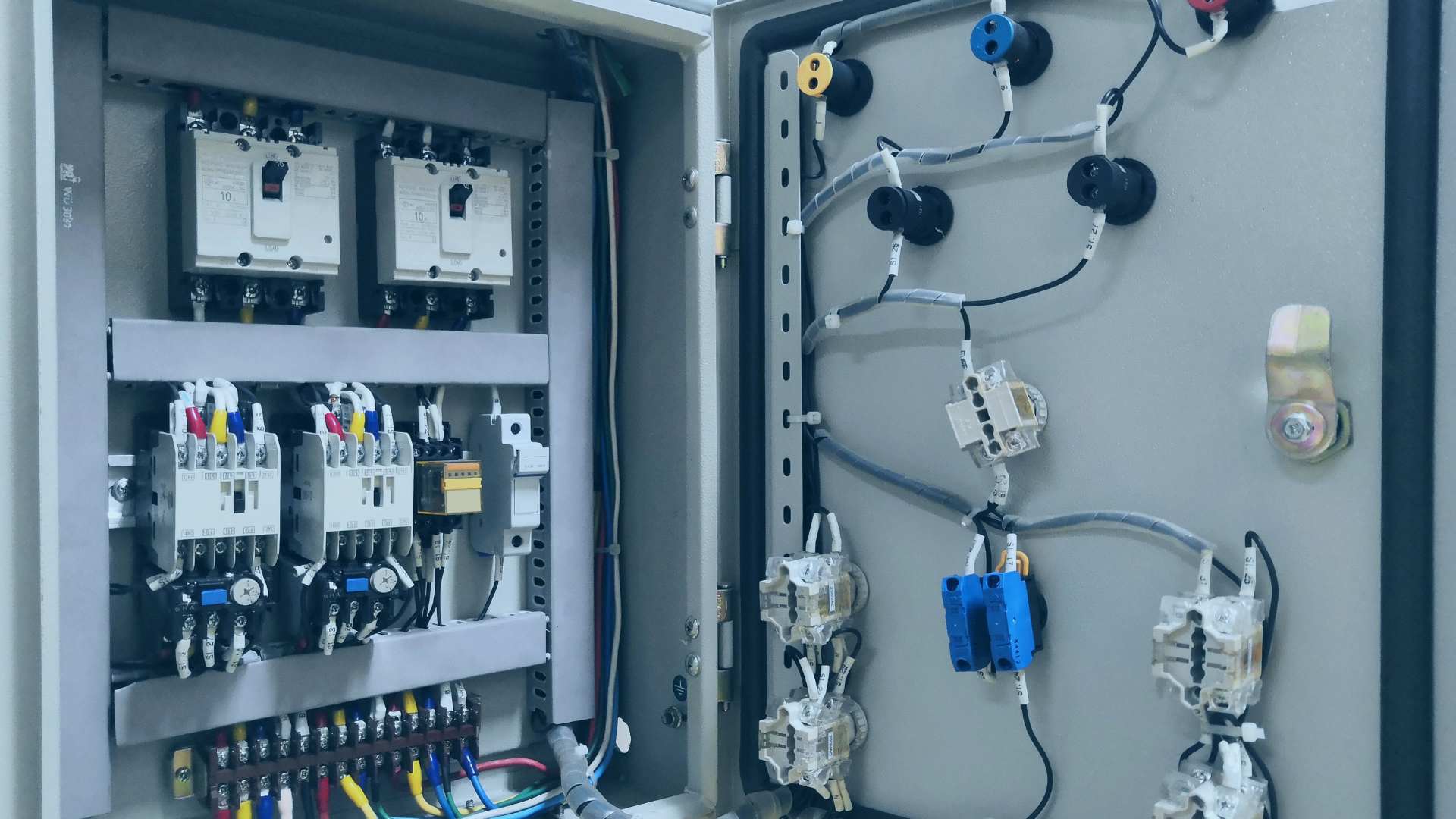

Automatic Transfer Switch (ATS) Panel
Specifications:
- In Accordance to IEC 61439-1
- Rated insulation voltage 1000V
- Main busbars rated up to 2500A
- Neutral busbars rated 100% of main busbar
- Earth busbars rated 50% of Neutral busbar
- Indoor & outdoor applications, up to IP55
- Wall mounting or free standing to suit application
- Powder coating as per customer color choice

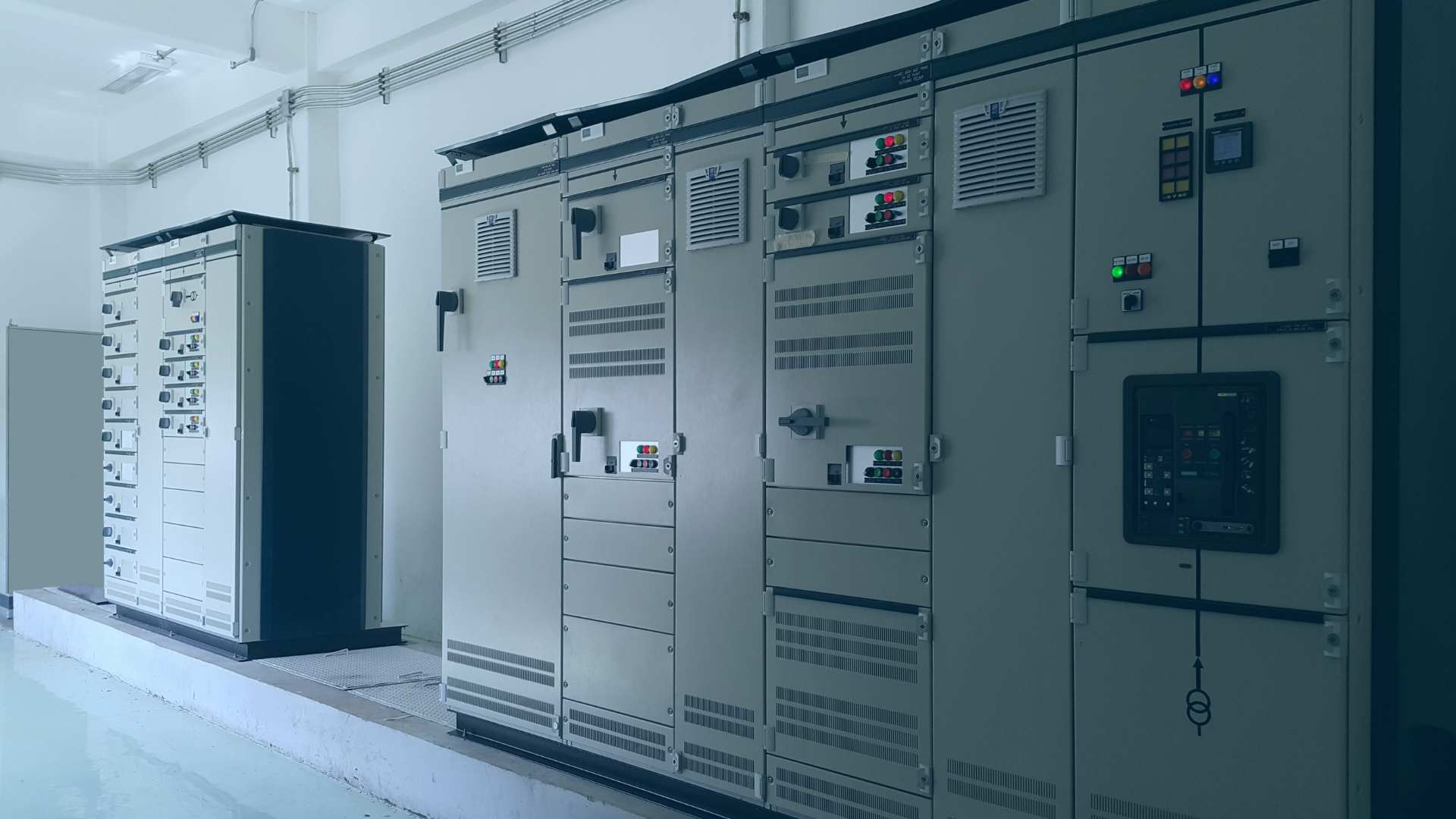

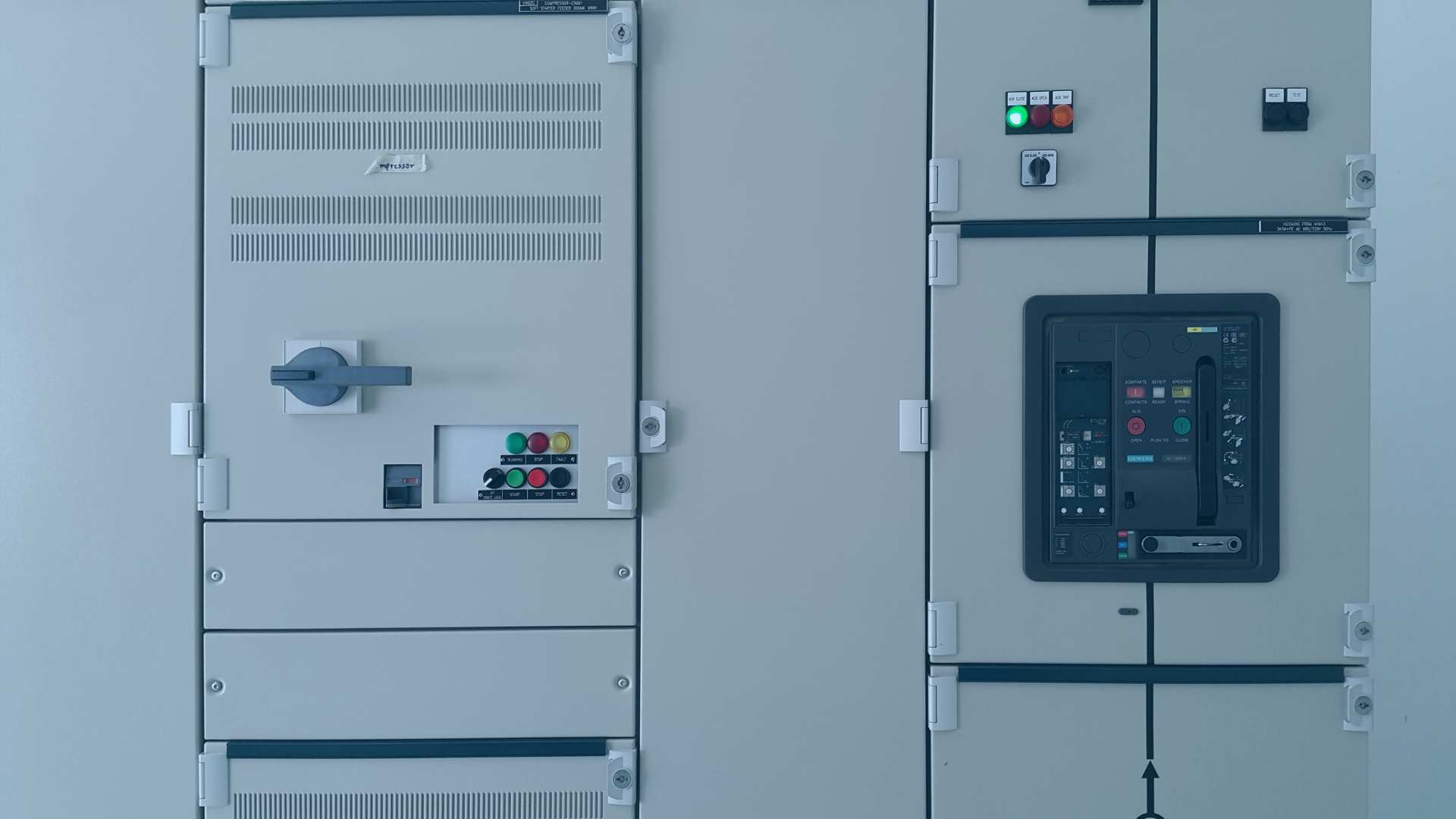

Motor Control Centers (MCC)
Specifications:
- Accordance with IEC 61439
- Index of protection: IP65 (application specific)
- Free standing and wall mounting
- Compliant with local regulations
- Easy installation and maintenance
- Powder coating as per customer color choice

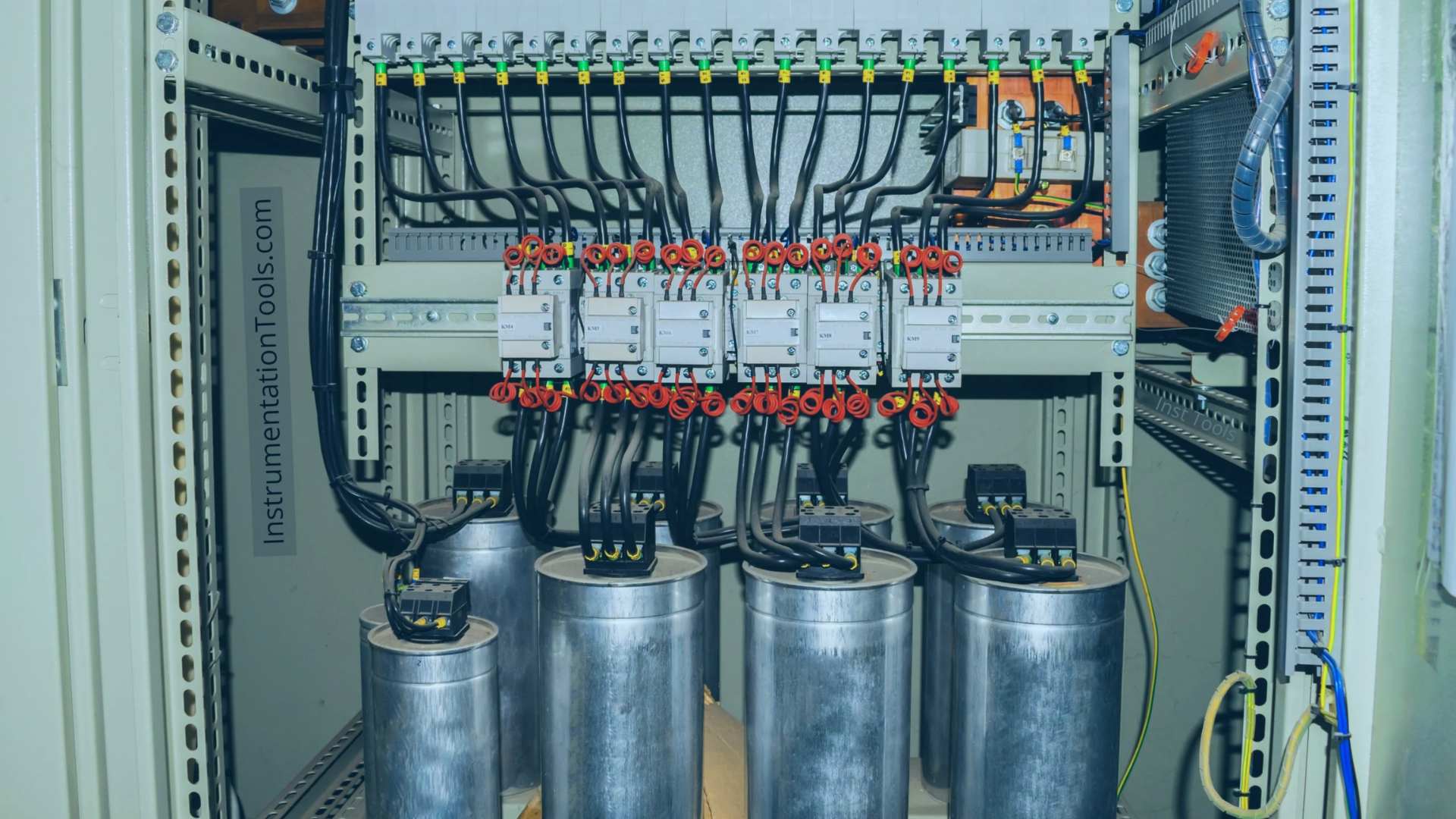

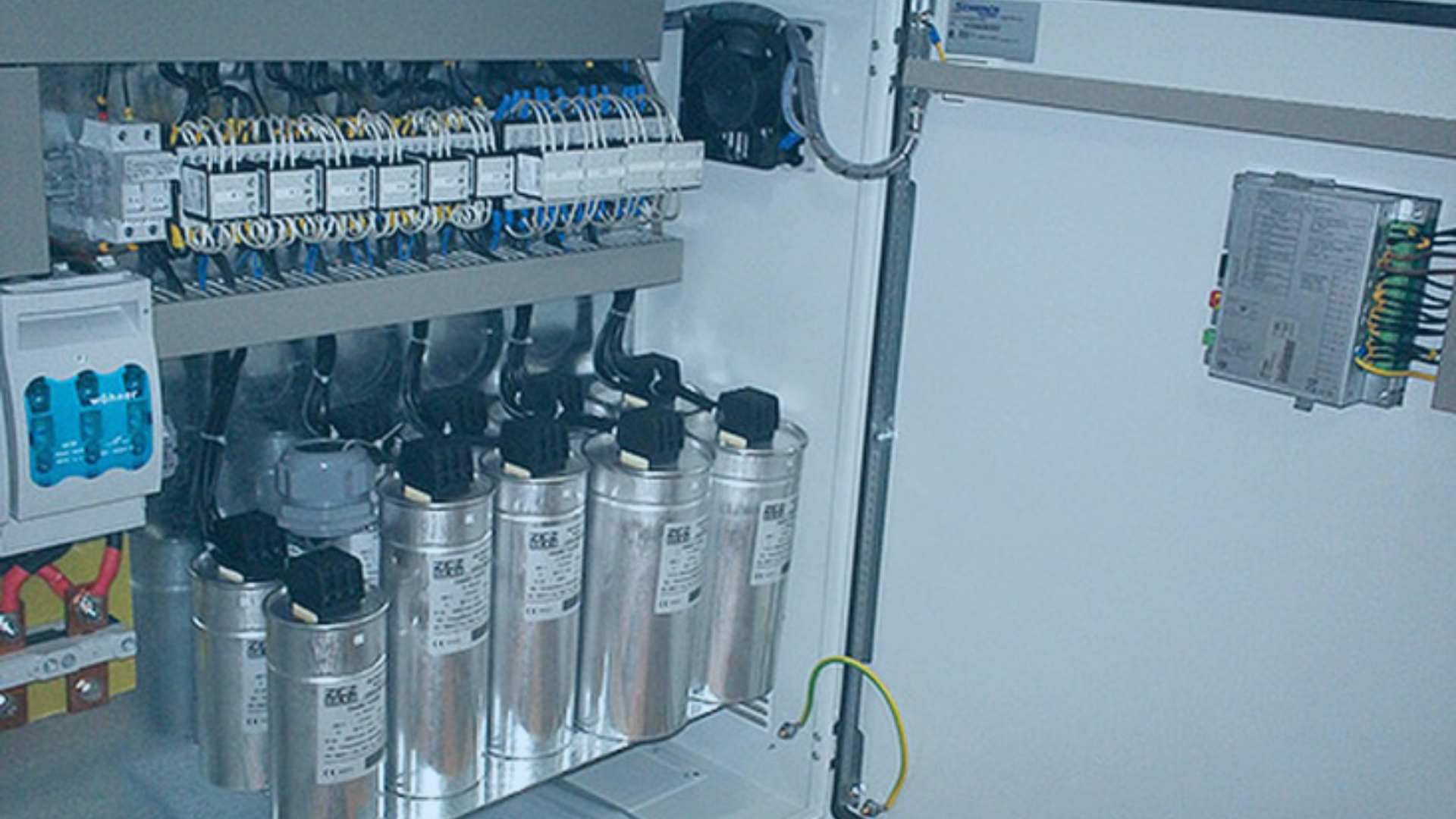

Capacitor Panels
Specifications:
- Assemblies according to IEC 61439
- Rated up to 500 KVar
- Power factor correction by multi-step design
- Construction: Form 2, wall mounting for lower rating
- Microprocessor-based power factor controller
- Special contactors for capacitors with inrush resistance
- Designed for air flow and heat dissipation
- Easy installation & maintenance
Miscellaneous
- Metering Panels
- Monitoring Panels
- Busbar Chambers
- Local Control Panels
- Feeder Pillar Panels
